matplotlib & ipympl

ipympl (the name comes from IPython - MatPlotLib) is the modern way to display matplotlib outputs under IPython / Jupyter

• it adds an interactive layer to a plot, that lets you “dive in” the data

• in addition, it is also compatible with ipywidgets for adding interactivity of your own (i.e. the ability to change parameters)

executive summary¶

not under jupyter book¶

at this point, this sort of figures won’t render well under jupyter book, meaning if you read this as a static HTML document, you won’t see the figures
in that case, you are encouraged to download this notebook and run it locally on your computer

requirements¶

ipympl requires a separate installation with - wait for it

pip install ipympl

operating mode¶

you use it in a notebook in a pretty straightforward way

it is what’s called a matplotlib backend, to you turn it on using the %matplotlib magic

# I recommend to use this form to enable ipympl

%matplotlib ipympl

reload your kernel¶

it is important that the %matplotlib magic appears before you draw any figure

if you find yourself in a situation where you have done a figure with the the default (inline) backend, and you want to switch to ipympl afterwards, then you need to restart your kernel !

some examples¶

the examples below are essentially copied as-is right from the doc here https://matplotlib.org/ipympl/examples/full-example.html

the figure is natively interactive¶

first, let’s see the native interactive tools - in the code it is named the toolbar

import matplotlib.pyplot as plt
import numpy as np

# Testing matplotlib interactions with a simple plot
fig = plt.figure(figsize=(8, 4))
plt.plot(np.sin(np.linspace(0, 20, 100)));

at that point, your figure is interactive:

• notice the gray triangle in the lower right corner: you can resize it

• hover your mouse on the figure, and you’ll see the toolbar show up; with it you can

  • select the zoom tool (a square), and then select a region to zoom in

  • select the home tool, the figure steps back to the oginal vantage point

  • hover the mouse on the toolbar buttons to get a grip of what they do

now quickly, here are a few things you could do programatically with this toolbar

# Always hide the toolbar
fig.canvas.toolbar_visible = False

# Put it back to its default|
fig.canvas.toolbar_visible = 'fade-in-fade-out'

# Change the toolbar position
fig.canvas.toolbar_position = 'top'

# Hide the Figure name at the top of the figure
fig.canvas.header_visible = False

# Hide the footer
fig.canvas.footer_visible = False

# Disable the resizing feature
fig.canvas.resizable = False

# back on
fig.canvas.toolbar_visible = True

# a funny feature is, you can 'duplicate' the figure, they will both update in sync !

display(fig.canvas)

changing a line plot with a slider¶

here’s now a more interesting example, where we create a slider to see how an external parameter impacts the figure

observe the following:

• this no longer uses the interact() function, that one would have used to achieve this a few years back

• instead, thanks to the slider.observe() call, a change to the slider triggers a call to update_lines()

• which in turn does an ‘in place’ change of the figure, by locating the curve to modify with lines[0].set_data()

# When using the `widget` backend from ipympl,
# fig.canvas is a proper Jupyter interactive widget, which can be embedded in
# an ipywidgets layout. See https://ipywidgets.readthedocs.io/en/stable/examples/Layout%20Templates.html

# One can bound figure attributes to other widget values.
from ipywidgets import AppLayout, FloatSlider

plt.ioff()

slider = FloatSlider(
    orientation='horizontal',
    description='Factor:',
    value=1.0,
    min=0.02,
    max=2.0,
)

slider.layout.margin = '0px 30% 0px 30%'
slider.layout.width = '40%'

fig = plt.figure()
fig.canvas.header_visible = False
fig.canvas.layout.min_height = '400px'
plt.title('Plotting: y=sin({} * x)'.format(slider.value))

x = np.linspace(0, 20, 500)

lines = plt.plot(x, np.sin(slider.value * x))

def update_lines(change):
    plt.title('Plotting: y=sin({} * x)'.format(change.new))
    lines[0].set_data(x, np.sin(change.new * x))
    fig.canvas.draw()
    fig.canvas.flush_events()

slider.observe(update_lines, names='value')

AppLayout(
    center=fig.canvas,
    footer=slider,
    pane_heights=[0, 6, 1]
)

3d plotting¶

the interesting things to observe in this example is

• the same native interactivity (resizing handle & toolbar) as in the first example

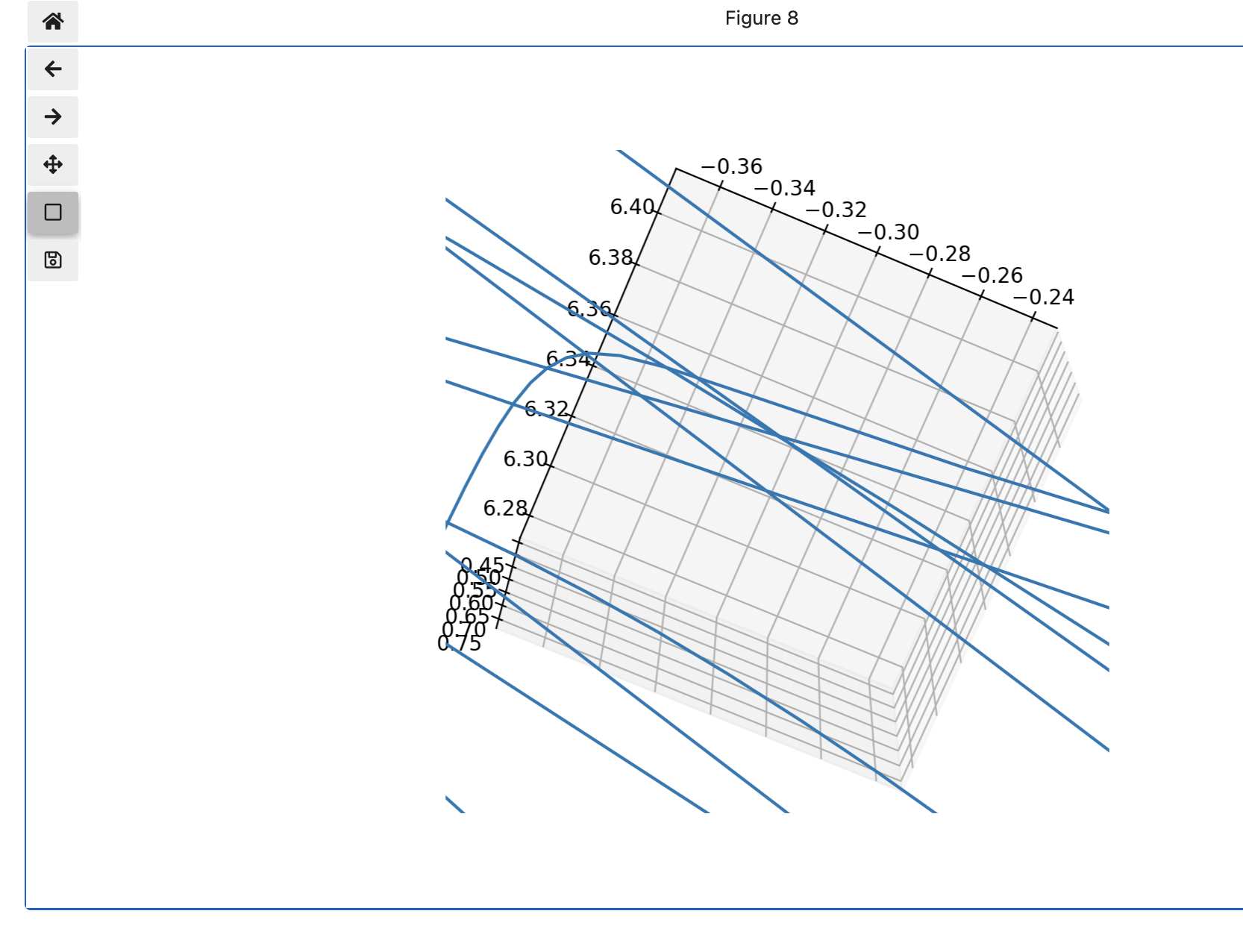

• and, what’s new, our ability to navigate inside the scene, to see things from anywhere and closer up (use the zoom button) like e.g.



from mpl_toolkits.mplot3d import axes3d

fig = plt.figure()
ax = fig.add_subplot(111, projection='3d')

# Grab some test data.
X, Y, Z = axes3d.get_test_data(0.05)

# Plot a basic wireframe.
ax.plot_wireframe(X, Y, Z, rstride=10, cstride=10)

plt.show()
